3 Cyl. 1028cc Kohler Diesel Engine


2017 RANGER DIESEL 1000 HD Specifications

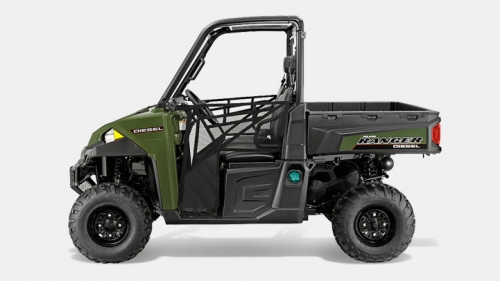

Ranger Diesel 1000

KEY FEATURES:

  • 3 cylinder, 1028cc, Tier 4 Compliant Kohler Diesel engine
  • Designed to accept revolutionary Pro-Fit Cab System
  • 110 amps of alternator output
  • Electronic Power Steering

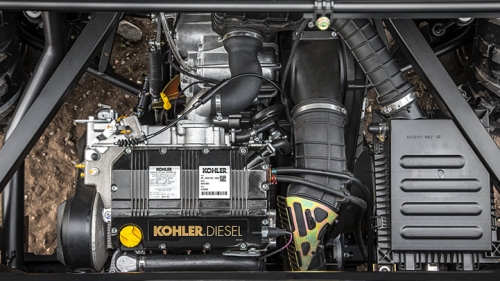

Durable, Long Life Engine Design

The RANGER Diesel Kohler engine has a compact, heavy-duty design with a cast iron crankcase for durability and an aluminum cylinder head for weight reduction. Full pressure lubrication provides superior protection and engine life. And, the new powerplant is EPA/CARB Tier 4 compliant.

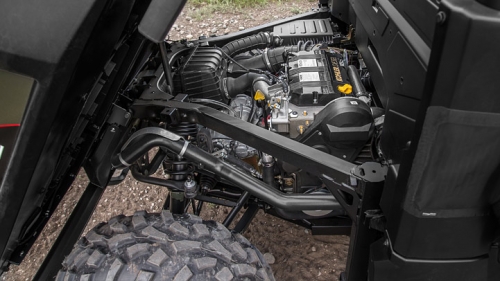

110 AMP Alternator

For ultimate accessory integration and to power all your electrical needs, the RANGER Diesel is outfitted with a massive 110 amps of alternator output – more than double previously.

On Demand True All-Wheel Drive

With the Polaris true AWD advantage, all four wheels engage automatically when your vehicle needs more forward traction and reverts back to 2WD when it doesn’t. When in 2WD, the VersaTrac Turf Mode switch unlocks the rear differential for easier, tighter turns that won’t tear up your lawn.

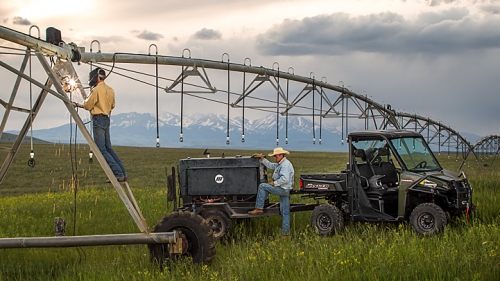

Class-Leading Towing and Payload

With a monstrous class-leading 907.2 kg towing capacity and standard 5 cm receiver, the RANGER Diesel allows you to tackle the toughest jobs with confidence. Additionally, a class-leading 680.4 kg payload capacity is highlighted by a rear box with gas-assist dumping operation that can tote up to 453.6 kg of materials and a full-sized pallet.

Engine Braking System & 4 Wheel Descent Control (4WDC)

For optimal control on descents, theRANGER Diesel 1000 HD (EPS) features a new Polaris 4 Wheel Descent Control (4WDC), which was designed specifically for the hills and duty cycles of Australia and New Zealand. The system automatically engages all four wheels when travelling down slopes for optimal traction and control in all conditions.

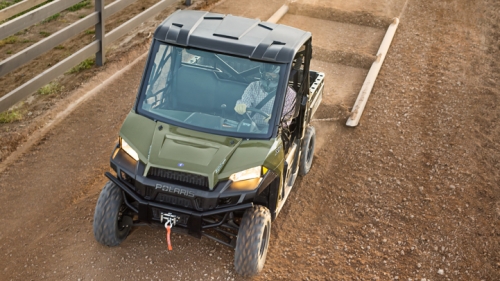

Electronic Power Steering

The smoothest, most responsive power steering available, plus Variable Assist for easier steering at lower speeds. Our EPS lets you drive all day with less fatigue from steering.

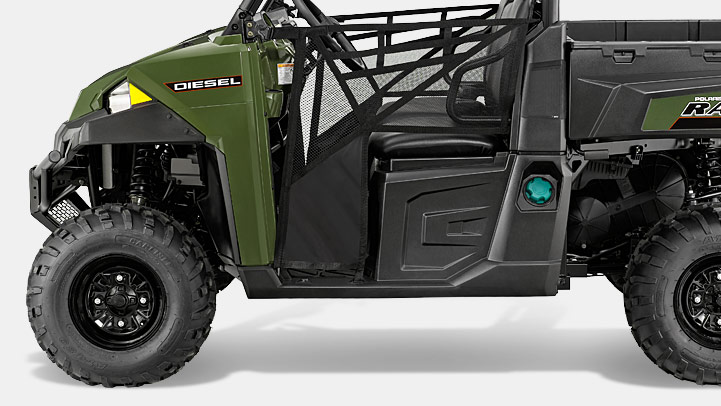

All Day Riding Comfort

We designed the RANGER Diesel with an ideal seat height combined with wide 31 cm clearance for easy entry and exit. Plus, experience a full 25.4 cm of tilt steering adjustment, spacious center console and room for five adults.

High Ground Clearance

Polaris engineers designed the RANGER Diesel with a perfect balance of smooth riding, handling and turning radius from an ideal 206 cm wheelbase paired with 30.5 cm of ground clearance.

Versatile Carlisle Tires

Versatile Carlisle 489 tires offer good traction and easy steering. With a rounded corner tread pattern, the tires provided extra grip while turning.

Loaded With Convenience

A driver’s side fuel access for the large 37.9 L diesel tank makes fill-ups on the job or while trailering a breeze. And maintenance has never been easier. To check and fill engine oil, just raise the cargo box. Plus, there are plenty of grease zerks to flush joints of debris.

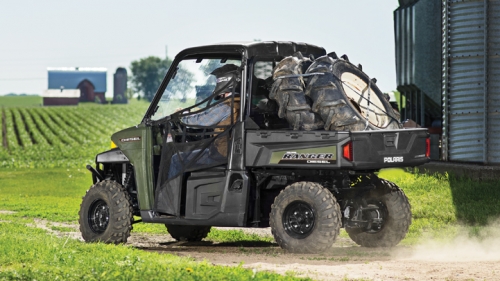

Heavy Duty Features

The RANGER Diesel 1000 HD is built for Australia & New Zealand with Heavy Duty “HD” Features. This special model variant exclusively designed for our local conditions comes complete with greasable/sealed ball joints, upgraded rear driveshaft, grease fittings and sealed A-Arm bushes to not only provide increased durability in our harsh conditions, but also provide easier ongoing maintenance.

[nggallery id=26]

SPECIFICATIONS

ENGINE & DRIVETRAIN

Active Descent Control Not Equipped
Cooling Liquid
Drive System Type On-Demand True AWD/2WD/ VersaTrac Turf Mode
Drive/Driven Clutch Not Equipped
Fuel System Mechanical Injection
Transmission/Final Drive Automatic PVT H/L/N/R; Shaft
Cylinders-Displacement (cc) 1028cc
Engine Type 3-Cylinder Diesel

SUSPENSION

Front Suspension Dual A-Arm 25.4 cm (10.0″) Travel
Rear Suspension Dual A-Arm, IRS 25.4 cm (10″) Travel

BRAKES

Front/Rear Brakes 4-Wheel Hydraulic Disc with Dual-Bore Front Calipers
Parking Brake Park In-Transmission

TIRES / WHEELS

Front Tires 25 x 10-12; 489
Rear Tires 25 x 11-12; 489
Wheels Stamped Steel

DIMENSIONS

Bed Box Dimensions (L x W x H) 93 cm x 137 cm x 29 cm (36.5″ x 54″ x 11.5″)
Front/Rear Rack or Box Capacity N.A./453.6 kg (1,000 lb)
Fuel Capacity (Litres) 37.9 L (10 gal)
Ground Clearance 30.5 cm (12″)
Overall Vehicle Size (L x W x H) 296 cm x 152 cm x 193 cm (116.5″ x 60″ x 76″)
Payload Capacity 680.4 kg (1,500 lb)
Person Capacity 3
Wheelbase 206 cm (81″)
Estimated Dry Weight (pounds/kg) 649 kg (1,430 lb)

FEATURES

Cargo System Lock & Ride
Color / Graphics Sage Green
Hitch Towing Rating 907.2 kg (2,000 lb)
Hitch Type Standard/5 cm (2″) Receiver
Instrumentation Digital Gauge, Speedometer, Odometer, Tachometer, Tripmeter, Hour Meter, Clock, Gear Indicator, Fuel Gauge, Hi-Temp/Low-Batt Lights, DC Outlets (2)
Lighting 55W low/ 60W high, LED Tail
